INVISIO V60 ADP II at a glance
INVISIO V60 II ADP is the ultimate warfighter hub and PTT designed to bridge audio, data and power. Building on the combat proven V-Series it provides the modern warfighter more functionality with less devices by integrating systems and data
The INVISIO V60 II ADP is a tri com control unit designed to be the ultimate warfighter hub. Bridging audio, data and power, it provides more functionality with less devices by integrating systems and data.
The V60 II ADP routes power and USB data between COM ports, thus acting as a simple USB 2.0 hub.

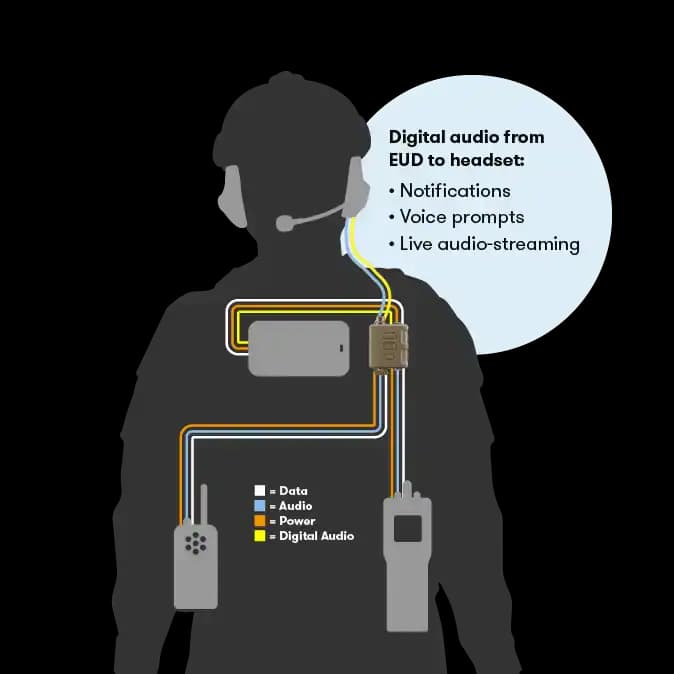

Notifications from end user devices (EUDs), and live audio streaming can be transmitted directly to the headset.
It is powered from connected comms devices, features 3 COM ports and 4 PTT buttons and is capable of connecting into any type of communication device.
Submersible to 20 meters, MIL-STD-810G and MIL-STD-461F compliant, the V60 II ADP weighs 147 grams and measures 70 x 63 x 25 mm.
Maximum capability, reduced burden
Providing unparalleled capability whilst reducing the equipment burden on soldiers in the battlefield.
The V60 II ADP works as a hub, integrating radios and EUDs, reducing the need for additional power, as well as the number of connections and cables.
Individual headsets for radio comms and data-driven (EUD) comms are no longer needed.
Soldiers do not have to carry extra power sources, as it is possible to use the connected radios to power the control unit and EUD.
Frequently Asked Questions
Can I use my existing headsets with the V60 II ADP?
Yes. As long as they are with Gen II settings, the headsets work with the V60 II ADP.
Can I get audio cues from EUD to my comms headset?
Yes. The ADP V60 II hub and control unit enables audio cues from EUD to headset, reducing the need to look at and operate EUD.
Can I use the INVISIO V60 II ADP to distribute power to different devices?
Yes. With the V60 II ADP, you can use the connected radios to power the control unit and EUD with no extra power source, as well as leaving extra power available for other connected devices.
How do I get technical support?
At INVISIO, we provide technical support on all our products. Please send us your needs and list your current INVISIO equipment to info@invisio.com, and we will get back to you as soon as possible.
